JL PPR — PRESSURE PIPING SYSTEMSPlumbing That Lasts
Plumbing That Lasts
Generations

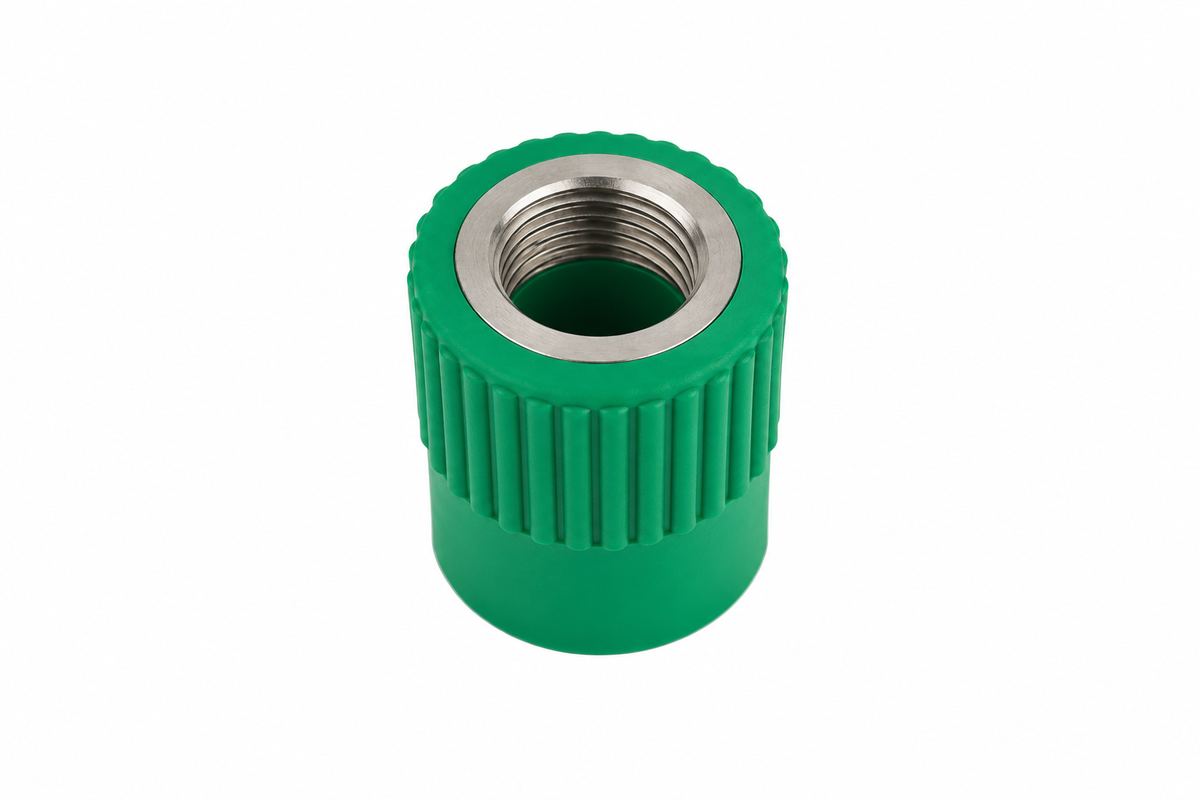

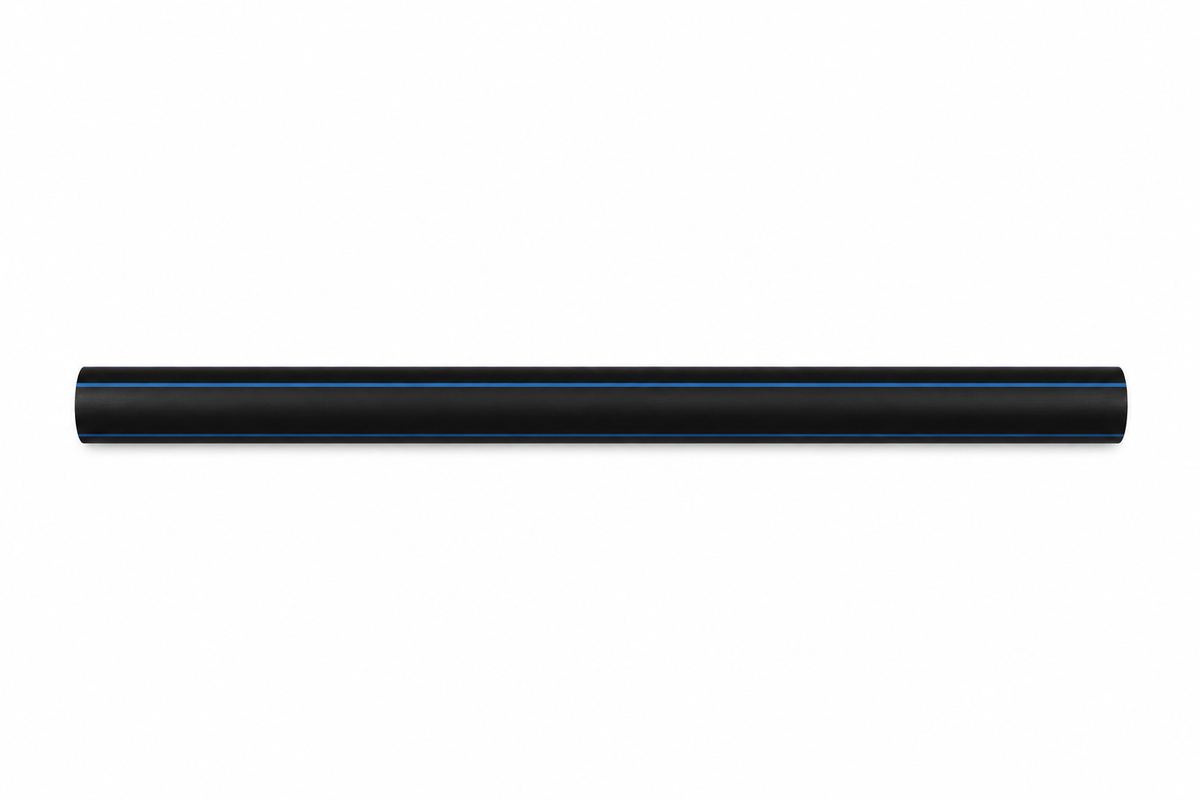

PPR hot & cold water pipes and fittings with leak-proof heat-fusion joints — rated up to PN20 for pressure you can trust, for 50 years.
🔥
Hot & Cold Rated
Safe for continuous use up to 95°C — hot water systems included.
🔩
Fusion Welded Joints
Heat-fused connections form a single homogeneous pipe — zero leak points.
🦠
Hygienic & Inert
Non-toxic, corrosion-free bore that never affects water taste or quality.
⏳
50 Year Lifespan
Rated for 50 years of continuous service at normal operating pressure.
DIMENSIONS & PRESSURE RATING
Full Size Range, One Standard
Manufactured to PP-R80 material spec (ISO 15874) — every diameter engineered for the pressure class it carries.
| Outer Diameter | Pressure Class | Wall Thickness |
|---|---|---|
| 20mm | PN20 | 2.8mm |
| 25mm | PN20 | 3.5mm |
| 32mm | PN20 | 4.4mm |
| 40mm | PN20 | 5.5mm |
| 50mm | PN20 | 6.9mm |
| 63mm | PN20 | 8.6mm |
| 75mm | PN16 | 8.4mm |
| 90mm | PN16 | 10.1mm |
| 110mm | PN16 | 12.3mm |
Standard length: 4 metres. Max continuous operating temperature: 95°C. Joining method: socket heat-fusion welding.
